LED STREET LIGHT INSTALLATION STEPS

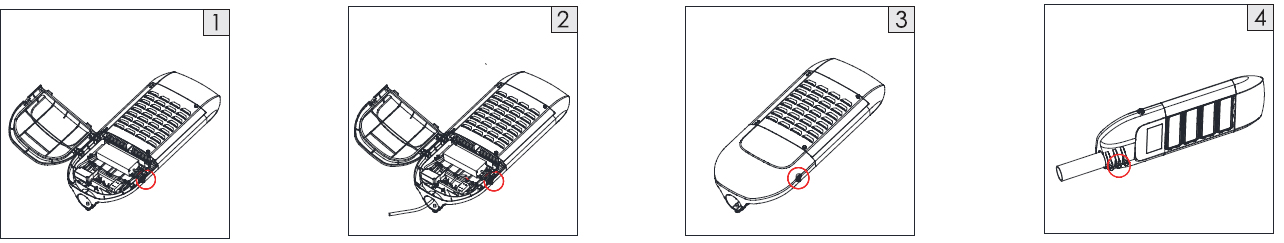

INSTALLATION：

Step 1: Switch the knob at side to the unlock state and then open the driver box cover

Step 2: Pass the AC input cable through the waterproof connector in the tube, and connect the live, neutral and earth wires to the terminals respectively, then tighten up the waterproof connector.

Step 3: Close the driver box cover, switch the knob to the lock state.

Step 4: Mount the luminary onto the pole through the tube with the pole reaching the innermost stop, put the luminary straight, then tighten up the three mounting screws.

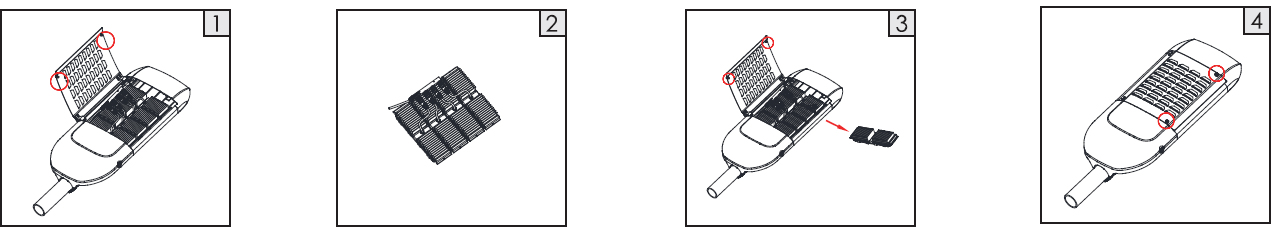

MAINTENANCE：

Step 1: Loosen the two hand screws and open the cover.

Step 2: Loosen the two screws at the ends of the module and disconnect the male terminal from the female terminal of the waterproof connector, then take out the module.

Step 3: Install a new module as replacement, tighten up the two screws at the ends, connect to the female terminal.

Step 4: Close the cover and tighten up the two screws.

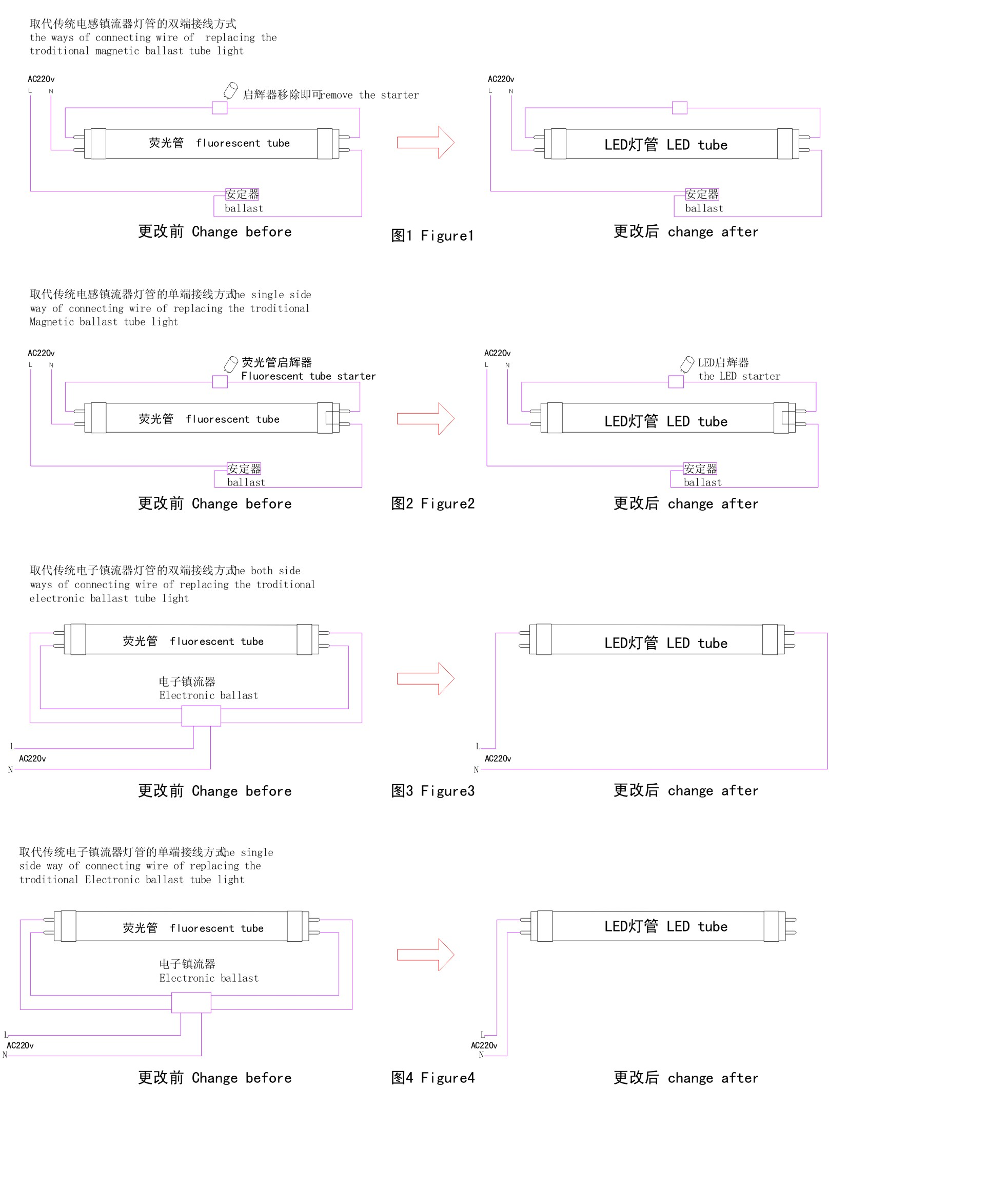

LED TUBE LIGHT INSTALLATION STEPS
