100W LED Corn Light
ADVANTAGE
TUV、ENEC、RCM、SAA、CE、RoHS certificate
E27、 E40 lamp base
Warm / Natural / Cool / Cold white
360 degree lighting, high CRI.
IP64 Waterproof Rating
Big heat sink
Can be with clear or frosted cover.
Internal driver, input voltage AC100-240V.
New style and high efficient wide-range input.
Long lifespan and good heat dissipation.
Direct replacement for Metal Halide, Easy Installation.
Fits many different fixtures to replace traditional lamps.
APPLICATION
Widely used in supermarket, warehouse, garage, home, office, hotel, hospital, school, street, garden etc.
TECHNICAL DATA SHEET
|
Product
Specifications
|
|
Product name
|
LED Corn Light
|
|
Light Type
|
Corn Light
|
|
Part No
|
ZY- CL100
|
|

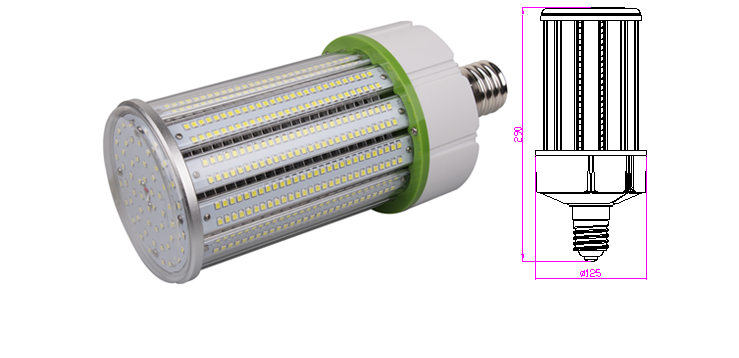

Dimension
|
Φ125*290 MM
|
|
Technical
Characteristic
|
|
Cover
|
Clear
|
Frosted
|
|
Color temperature
|
2700-6500K
|
|
CRI
|
＞80
|
|
Lumen
|
13000 LM
|
12500 LM
|
|
Lumen Efficacy
|
130 LM/W
|
125 LM/W
|
|
Input Power
|
100 W
|
|
Viewing Angle
|
360 degree
|
|
Input Voltage
|
AC100-240V 50/60Hz
|
|
PFC
|
>90%
|
|
Equivalent
|
200W
CFL，250W MHL/HPS/HID
|
|
Waterproof Rating
|
IP64
|
|
Materials
|
|
LED Brand
|
EPISTAR
|
|
LED Type
|
SMD2835
|
|
LED QTY
|
728 PCS
|
|
Housing
|
PC+AL
|
|
Housing color
|
White+Grey
|
|
Others
|
|
Operating Temperature
|
-20℃ TO 45℃
|
|
Operating Humidity
|
20％-70％ RH
|
|
Storage Temperature
|
-30℃ TO 80℃
|
|
Storage Humidity
|
10％-75％ RH
|
|
Application
|
Indoor/Outdoor
|
|
Safety Certification
|
TUV、RCM、SAA、CE、RoHS
|
|
Warranty Time
|
5 Years
|

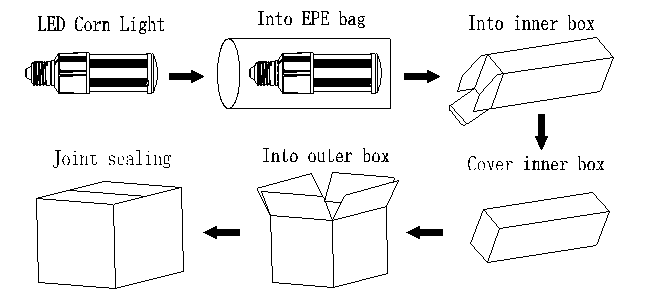

PACKAGE
|
BOX
|
Size
|
Qty/
Carton
|
NetWeight/
Carton
|
Gross
Weight/ Carton
|
|
Inner box
|
320*150*150 MM
|
1 PC
|
1.13 KG
|
1.33 KG
|
|
Outer box
|
465*315*340 MM
|
6 PCS
|
6.8 KG
|
8.8KG
|
