30W LED Corn Light
ADVANTAGE
TUV、ENEC、RCM、SAA、CE、RoHS certificate
E27、 E40 lamp base
Warm / Natural / Cool / Cold white
360 degree lighting, high CRI.
IP64 Waterproof Rating
Big heat sink
Can be with clear or frosted cover.
Internal driver, input voltage AC100-240V.
New style and high efficient wide-range input.
Long lifespan and good heat dissipation.
Direct replacement for Metal Halide, Easy Installation.
Fits many different fixtures to replace traditional lamps.
APPLICATION
Widely used in supermarket, warehouse, garage, home, office, hotel, hospital, school, street, garden etc.
TECHNICAL DATA SHEET
|
Product
Specifications
|
|
Product name
|
LED Corn Light
|
|
Light Type
|
Corn Light
|
|
Part No
|
ZY- CL30
|
|

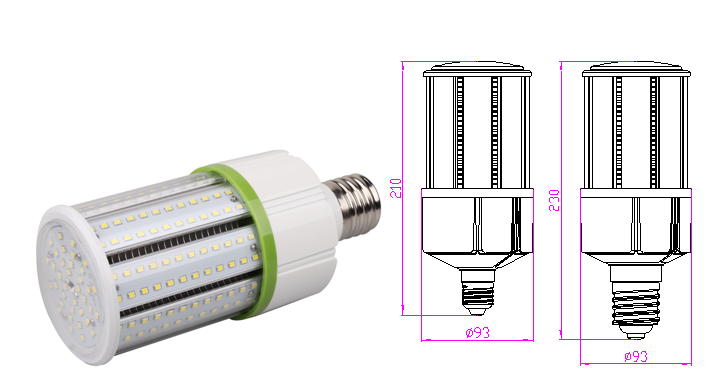

Dimension
|
Φ93*210 MM（E27）
|
Φ93*230 MM（E40）
|
|
Technical
Characteristic
|
|
Cover
|
Clear
|
Frosted
|
|
Color temperature
|
2700-6500K
|
|
CRI
|
＞80
|
|
Lumen
|
3900 LM
|
3750 LM
|
|
Lumen Efficacy
|
130 LM/W
|
125 LM/W
|
|
Input Power
|
30 W
|
|
Viewing Angle
|
360 degree
|
|
Input Voltage
|
AC100-240V 50/60Hz
|
|
PFC
|
>90%
|
|
Equivalent
|
60W
CFL，100W MHL/HPS/HID
|
|
Waterproof Rating
|
IP64
|
|
Materials
|
|
LED Brand
|
EPISTAR
|
|
LED Type
|
SMD2835
|
|
LED QTY
|
228 PCS
|
|
Housing
|
PC+AL (Fin)
|
|
Housing color
|
White+Grey
|
|
Others
|
|
Operating Temperature
|
-20℃ TO 45℃
|
|
Operating Humidity
|
20％-70％ RH
|
|
Storage Temperature
|
-30℃ TO 80℃
|
|
Storage Humidity
|
10％-75％ RH
|
|
Application
|
Indoor/Outdoor
|
|
Safety Certification
|
TUV、ENEC、RCM、SAA、CE、RoHS
|
|
Warranty Time
|
5 Years
|

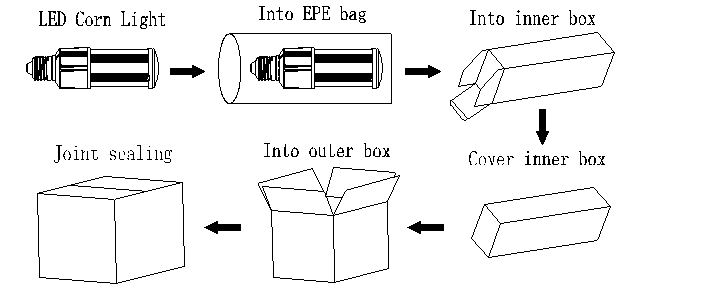

PACKAGE
|
BOX
|
Size
|
Qty/
Carton
|
NetWeight/
Carton
|
Gross
Weight/ Carton
|
|
Inner box
|
253*120*120 MM
|
1 PC
|
0.44KG
|
0.59KG
|
|
Outer box
|
495*375*270 MM
|
12 PCS
|
5.3 KG
|
8.2 KG
|
