15W LED Corn Light
ADVANTAGE
TUV、ENEC、RCM、SAA、CE、RoHS certificate
E27 lamp base
Warm / Natural / Cool / Cold white
360 degree lighting, high CRI
IP64 Waterproof Rating
Big heat sink
Can be with clear or frosted cover
Internal driver, input voltage AC100-240V
New style and high efficient wide-range input
Long lifespan and good heat dissipation
Direct replacement for Metal Halide, Easy Installation
Fits many different fixtures to replace traditional lamps
APPLICATION
Widely used in supermarket, warehouse, garage, home, office, hotel, hospital, school, street, garden etc.
TECHNICAL DATA SHEET
|
Product Specifications
|
|
Product name
|
LED Corn Light
|
|
Light Type
|
Corn Light
|
|
Part No
|
ZY- CL15
|
|

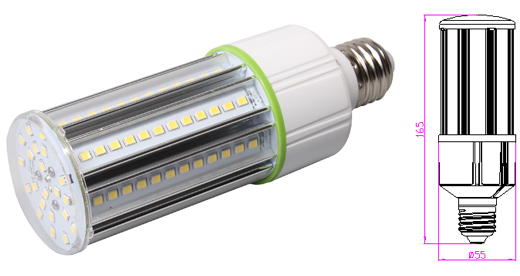

Dimension
|
Φ55*165 MM
|
|
Technical Characteristic
|
|
Cover
|
Clear
|
Frosted
|
|
Color temperature
|
2700-6500K
|
|
CRI
|
＞80
|
|
Lumen
|
19500 LM
|
18750 LM
|
|
Lumen Efficacy
|
130 LM/W
|
125 LM/W
|
|
Input Power
|
15 W
|
|
Viewing Angle
|
360 degree
|
|
Input Voltage
|
AC100-240V 50/60Hz
|
|
PFC
|
>90%
|
|
Equivalent
|
30W CFL，50W MHL/HPS/HID
|
|
Waterproof Rating
|
IP64
|
|
Materials
|
|
LED Brand
|
EPISTAR
|
|
LED Type
|
SMD2835
|
|
LED QTY
|
120 PCS
|
|
Housing
|
PC+AL
|
|
Housing color
|
White+Grey
|
|
Others
|
|
Operating Temperature
|
-20℃ TO 45℃
|
|
Operating Humidity
|
20％-70％ RH
|
|
Storage Temperature
|
-30℃ TO 80℃
|
|
Storage Humidity
|
10％-75％ RH
|
|
Application
|
Indoor/Outdoor
|
|
Safety Certification
|
TUV、ENEC、RCM、SAA、CE、RoHS
|
|
Warranty Time
|
5 Years
|

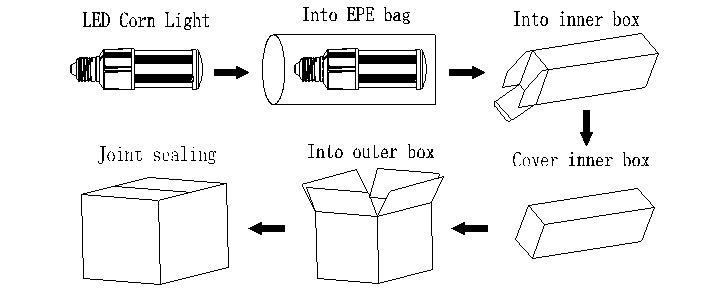

PACKAGE
|
BOX
|
Size
|
Qty/ Carton
|
NetWeight/ Carton
|
Gross Weight/ Carton
|
|
Inner box
|
165*55*55 MM
|
1 PC
|
0.21 KG
|
0.24KG
|
|
Outer box
|
345*290*295 MM
|
50 PCS
|
10.5KG
|
12.6 KG
|
