9W LED Corn Light
ADVANTAGE
TUV、ENEC、RCM、SAA、CE、RoHS certificate
E27 lamp base
Warm / Natural / Cool / Cold white
360 degree lighting, high CRI.
IP64 Waterproof Rating
Big heat sink
Can be with clear or frosted cover.
Internal driver, input voltage AC100-240V.
New style and high efficient wide-range input.
Long lifespan and good heat dissipation.
Direct replacement for Metal Halide, Easy Installation.
Fits many different fixtures to replace traditional lamps.
APPLICATION
Widely used in supermarket, warehouse, garage, home, office, hotel, hospital, school, street, garden etc.；
TECHNICAL
DATA SHEET
Product Specifications
|
Product name
|
LED Corn Light
|
|
Light Type
|
Corn Light
|
|
Part No
|
ZY- CL9
|
|

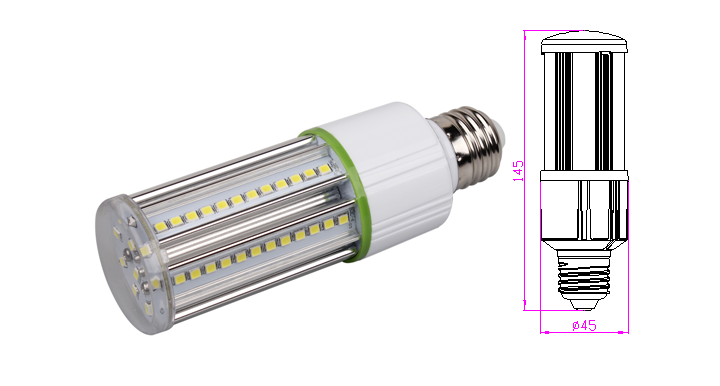

Dimension
|
Φ45*145 MM
|
|
Technical
Characteristic
|
|
Cover
|
Clear
|
Frosted
|
|
Color temperature
|
2700-6500K
|
|
CRI
|
＞80
|
|
Lumen
|
1170 LM
|
1125 LM
|
|
Lumen Efficacy
|
130LM/W
|
125LM/W
|
|
Input Power
|
9 W
|
|
Viewing Angle
|
360 degree
|
|
Input Voltage
|
AC100-240V 50/60Hz
|
|
PFC
|
>90%
|
|
Equivalent
|
18W
CFL，35W MHL/HPS/HID
|
|
Waterproof Rating
|
IP64
|
|
Materials
|
|
LED Brand
|
EPISTAR
|
|
LED Type
|
SMD2835
|
|
LED QTY
|
84 PCS
|
|
Housing
|
PC+AL
|
|
Housing color
|
White+Grey
|
|
Others
|
|
Operating Temperature
|
-20℃ TO 45℃
|
|
Operating Humidity
|
20％-70％ RH
|
|
Storage Temperature
|
-30℃ TO 80℃
|
|
Storage Humidity
|
10％-75％ RH
|
|
Application
|
Indoor/Outdoor
|
|
Safety Certification
|
TUV、ENEC、RCM、SAA、CE、RoHS
|
|
Warranty Time
|
5 Years
|

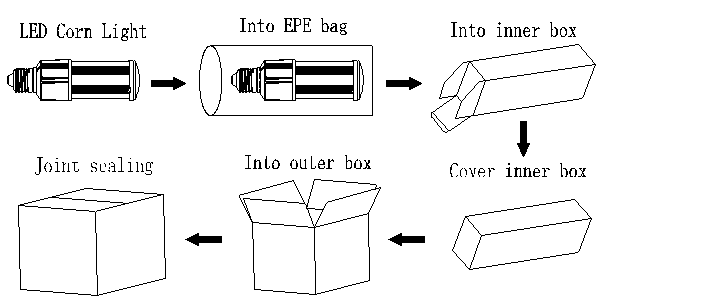

PACKAGE
|
BOX
|
Size
|
Qty/
Carton
|
NetWeight/
Carton
|
Gross
Weight/ Carton
|
|
Inner box
|
145*45*45 MM
|
1 PC
|
0.12 KG
|
0.14 KG
|
|
Outer box
|
305*240*245 MM
|
50 PCS
|
6.0 KG
|
7.6 KG
|
