ADVANTAGE

>110lm/w

Philips or Cree LED

IP66 Waterproof grate

Sosen or Meanwell or Inventronics Driver

Die casting aluminum housing equipped with level

Optical lens and tempered glass design for even light distribution and fireproofing

Automatically power off when opening. External SPD

Fast connection of inner wiring, no welding, nor screwdriver needed

Tc ≤ 70℃, Pad temperature≤ 85℃ when ambient temperature is 40℃ without wind

integrated design with driver and LED modulein single cavity.

Support 90° installation, include shockproof screw.(0°±5/90°± 5) adjust freely

 APPLICATION

Street lighting, park lighting, roadway lighting, path lighting

 TECHNICAL DATA SHEET

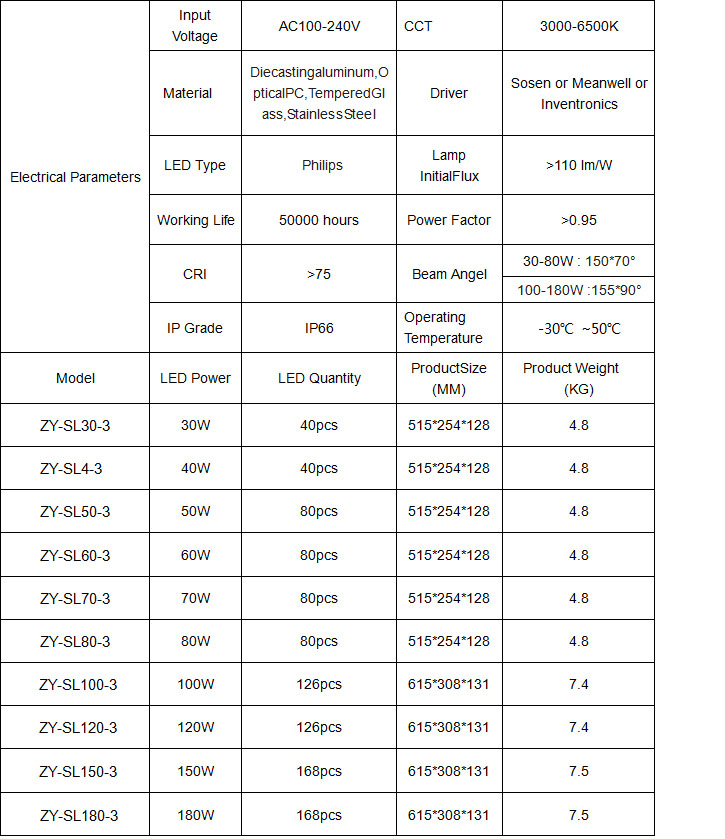

Product Specifications

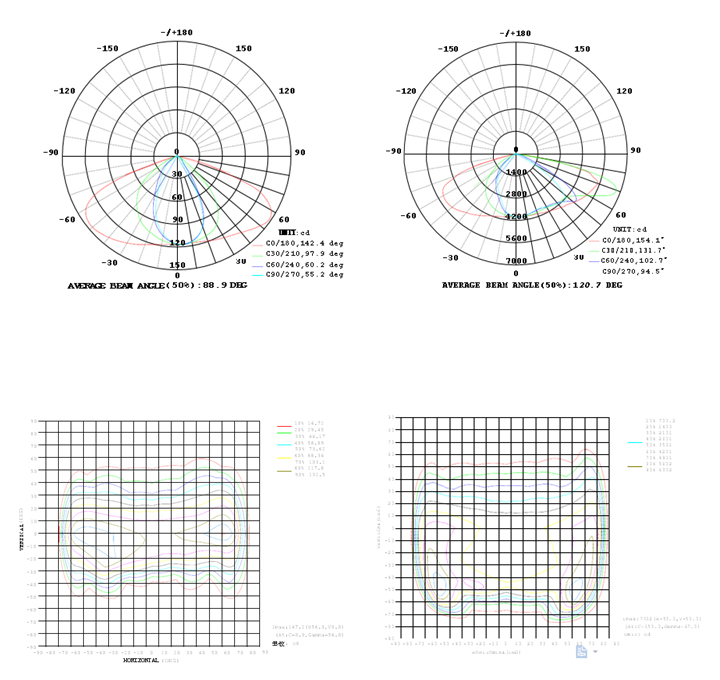

Luminous Intensity Distribution Diagram

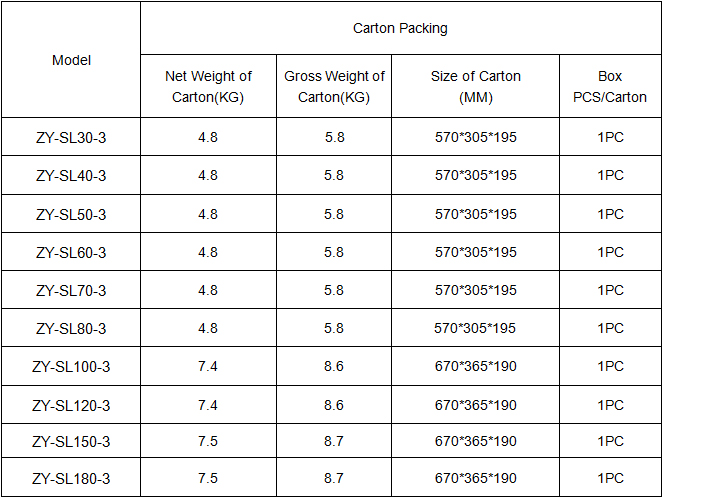

 PACKAGE
