ADVANTAGE

5 years warranty

Philips LED,MOSO driver

Modular pluggable technology, easy-tool onsite maintenance

Honeycomb briquette burning effect and the whole structure cooling technology

Separated driver box and module chamber

Double-coupling IP68 protection for module, highest waterproof level

Ergonomic lighting distribution to achieve uniform illuminating effect

Free modular serialization and various power solutions.

 APPLICATION

Street lighting, park lighting, roadway lighting, path lighting

 TECHNICAL DATA SHEET

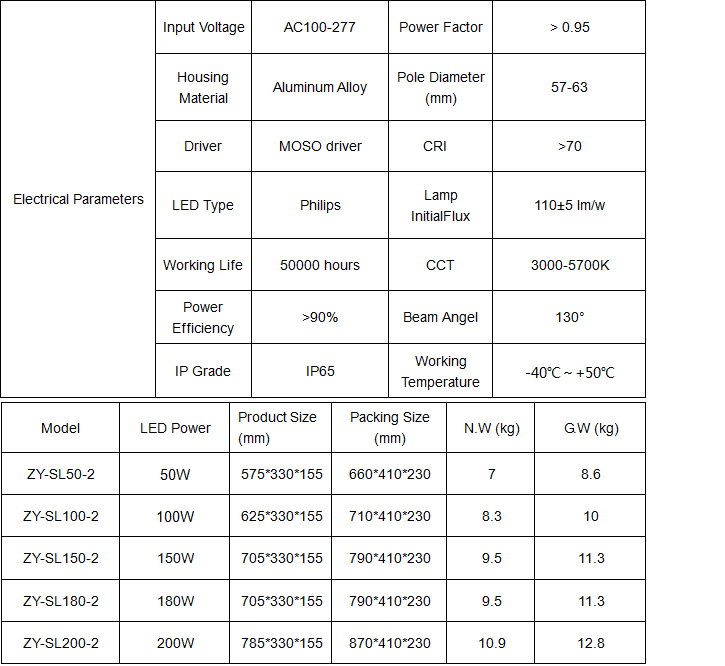

Product Specifications

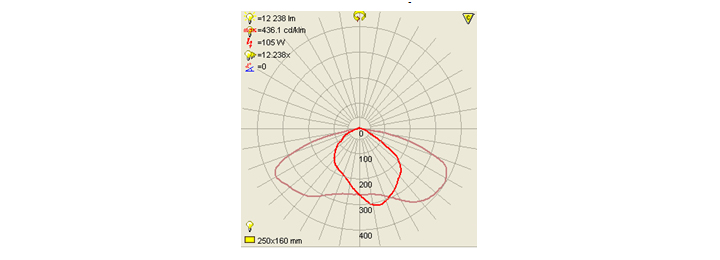

100W Luminous Intensity Distribution Diagram

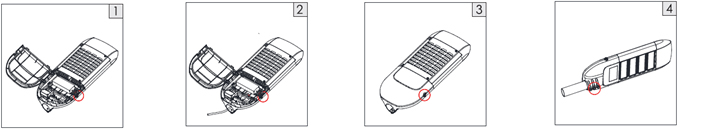

 INSTALLATION

Step 1: Switch the knob at side to the unlock state and then open the driver box cover.

Step 2: Pass the AC input cable through the waterproof connector in the tube, and connect the live, neutral and
     earth wires to the terminals respectively, then tighten up the waterproof connector.

Step 3: Close the driver box cover, switch the knob to the lock state.

Step 4: Mount the luminary onto the pole through the tube with the pole reaching the innermost stop, put the
     luminary straight, then tighten up the three mounting screws.

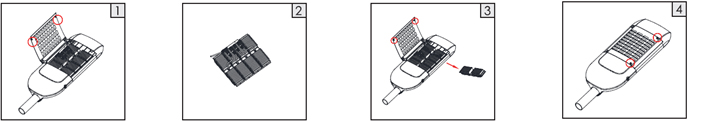

 MAINTENANCE

Step 1: Loosen the two hand screws and open the cover.

Step 2: Loosen the two screws at the ends of the module and disconnect the male terminal from the female terminal

            of the waterproof connector, then take out the module.

Step 3: Install a new module as replacement, tighten up the two screws at the ends, connect to the female terminal.

Step 4: Close the cover and tighten up the two screws.
